NAMAN RETREAT RESORT--
Khu Nghỉ Dưỡng Naman
Specifications | Khái quát
---
Location
Truong Sa road, Da Nang, Vietnam
Program
Resort
Design Year
2010
Status
built in 2015
Site Area
6.4 ha (2 phases: 3.4 + 3)
Master planning
Vo Trong Nghia Architects (3.4 ha)
Landscape Design
- Vo Trong Nghia Architects (embodiment)
- Land Sculptor Studio (detail)
Architecture Design
- Vo Trong Nghia Architects : Hotel, Back Office, Bungalows, Bamboo buildings, Beach Villas 1
- MIA Design Studio : Spa, Beach Villas 2, Villas B
- other consultants : Beach Club, Check-in area
Client
Thanh Do Investment Dev & Const Jsc (The Empire Group)
Main Contractor
Thanh Do Investment Dev & Const Jsc
Photographs (photos of completion)
* some photos from other sources are already noted below
Vo Trong Nghia Architects Team
- Design Major Team | Tham gia chính:
Trong Nghia Vo, Takashi Niwa, Hai Vu, T Duong Ngo, N Quang Dau, Viet Hung Nguyen, Thu Nguyen, Kieu Oanh Nghiem, Quoc Bao Hoang, Thoa Nguyen
- Others | Các thành viên khác:
-
architects: Trung Nguyen, Anne Julien, Minh Thai Do, Ruben Hellebuyck, Doan Thanh Ngo
-
students - internships: Dat Nguyen, Nghiem Doan, Ha My, Linh Ha, Phi Luu, Minh Thuy, Daishiro Mimura, Hong Vo, Hoa, Son, Kim Anh Nguyen, Cong Phung, Huy Nguyen, Hung Vuong, Others
- Bamboo Constr Manager
Ba Tuong Nguyen
Add Notes about Positions
-
Architect in Charge: Trong Nghia Vo
-
Monitoring Manager: Takashi Niwa, Hai Vu
-
Contact Representative : Thuy Duong Ngo
-
Team Leaders - Project Architects : N Quang Dau, Thuy Duong Ngo
-
Other Project Architects: Viet Hung Nguyen, Kieu Oanh Nghiem, Thu Nguyen, Thoa Nguyen
-
Team Member Architects: Q Bao Hoang, Trung Nguyen, Anne Julien, Minh Thai Do, Ruben Hellebuyck, Doan Thanh Ngo
-
N Quang Dau - MODS, was one of Team Leaders - Project Architects while he was working for Vo Trong Nghia Architects (along with Thuy Duong Ngo)
-----

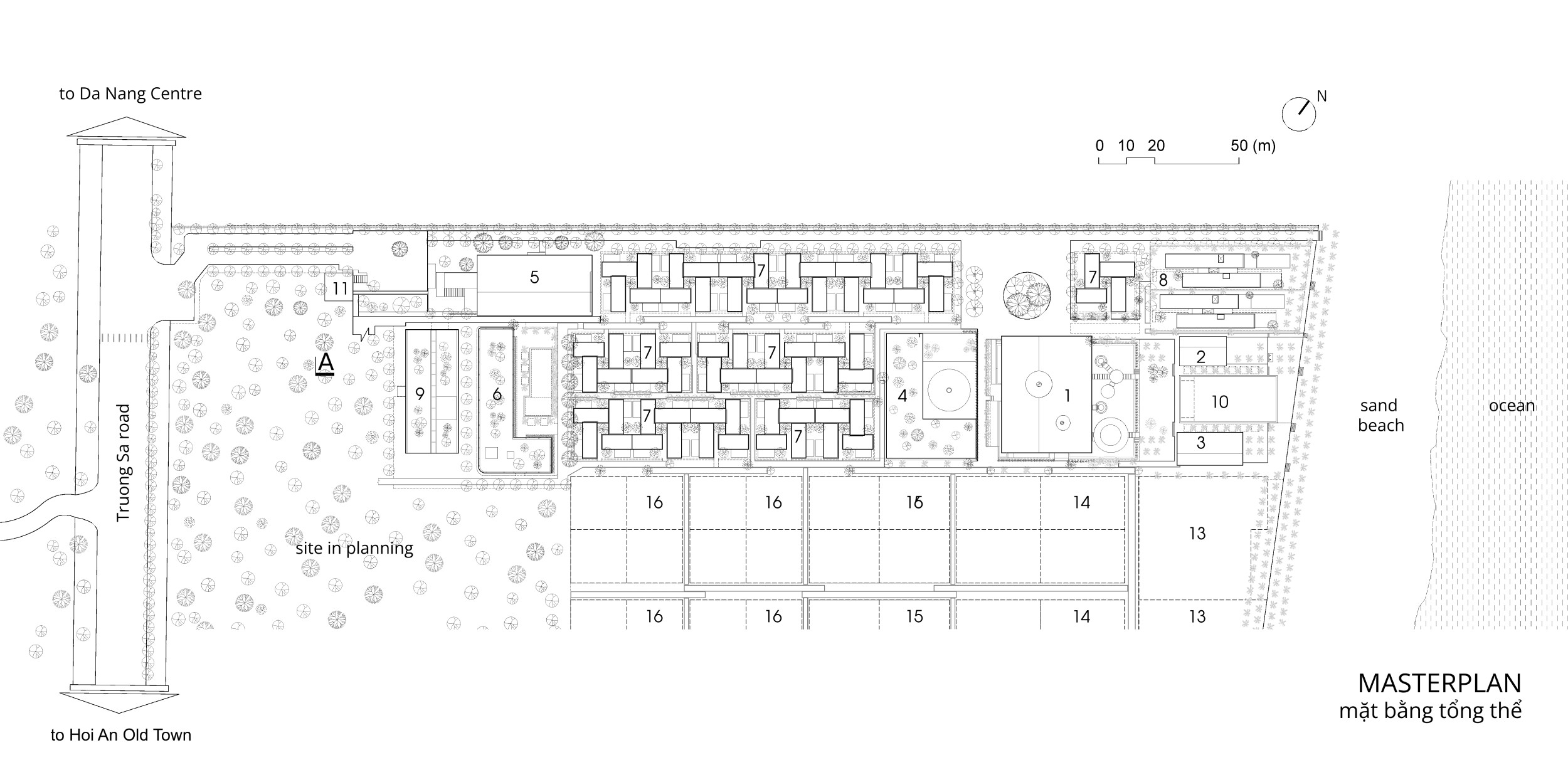

note: rendering image
- Da Nang Centre: trung tâm tp Đà Nẵng
- Hoi An Old Town: phố cổ Hội An
- ocean: biển
- sand beach: bãi biển
- site in planning: đang trong quy hoạch
- Truong Sa road: đường Trường Sa
1. Central Restaurant (Hay Hay Restaurant)
nhà hàng trung tâm (nhà hàng Hay Hay)
2. Beach Bar | bar bãi biển
3. Beach Club | câu lạc bộ (clb) bãi biển
4. Spa - Healthcare | spa - chăm sóc sức khỏe
5. Conference Hall | nhà hội nghị
6. Hotel (Naman The Babylon)
khách sạn (Naman The Babylon)
7. Bungalow Areas | các khu ở bungalow
8. Waving Beachfront Villas (villas E)
biệt thự biển mái lượn sóng (biệt thự kiểu E)
9. Back Of House | nhà điều hành và phụ trợ
10. Central Swimming Pool | bể bơi trung tâm
11. Check-in House | nhà check-in
12. Reserved site of Beach Club
phần dự kiến mở rộng của clb bãi biển
13. Straight Beachfront Villa (villas A)
biệt thự biển vuông vức (biệt thự kiểu A)
14. Villas B | biệt thự kiểu B
15. Villas C | biệt thự kiểu C
16. Villas D | biệt thự kiểu D
---------
---------
Overall Description
THUYẾT MINH TỔNG QUAN
(the overall description from Vo Trong Nghia Architects design firm)
The Resort concept of Naman Retreat is providing physical and mental treatment for the long stay guests by the nature friendly environment and healthy activities such as spa, yoga, beach sports and so on. To achieve a perfect atmosphere that enables the guests a maximum body and mind purification and relaxation, the resort was designed by harmonious mix of greenery, natural stone and bamboo.
In an area of 3.4 hectares, the design mission is to harmonize 80 bungalows, hotels, 2 beachfront villas, a restaurant, a spa, together with the infinity pool and several beach services such as beach bar and beach club. Two roads start the entrance to the seaside thoroughly connecting every service areas and bringing fresh and gracious breath of sea breeze to the internal space. Trees are planted along the roads, especially, bamboos are formed into closed canopies, like a thick curtain separating private sector and thereby, serving a precious time for guests when staying here. Central space is given priority with a larger area with open spaces, mainly created bamboos functioned as Lobby, Restaurants, Bar.
Two waving beachfront villas, located in the front seaward side, were planned in an unordinary way. Each one of them, is covered with a continuously undulating green roof and bamboo textured wall, which encourages a through view of the entire area directed to the sea without being restricted, following the nature and tourists’ inspiration. Hotel building named Babylon is the tallest building - all three stories are designed with louvers covering the facade - a prototype of double skin layer, adding available spaces for interlaced greening, forming an absolute green sector, which stands out of the remaining buildings. Bungalow clusters were smoothly and ingeniously combined with four houses in each, creating a Swastikas shape in a narrow square plot with twenty one meter in length for each side. All these four houses have a small common courtyard, while accompanied by a particular courtyard and a pool for each. Consequently, approximately thirty percent of the all bungalows are alternated by two-story bungalows, creating an overall view as bobbing houses in the old quarters.
The central facilities such as Hay Hay restaurant, beach bar and conference hall was designed with bamboo structure to provide spatial experience with relax atmosphere which cerebrates stay in the resort.
--
Additional Descriptions
MỘT SỐ TRÌNH BÀY THÊM
----
----
(The addition written by N Quang Dau, one of Project Architects when he was working for Vo Trong Nghia Architects, now founder of MODS)

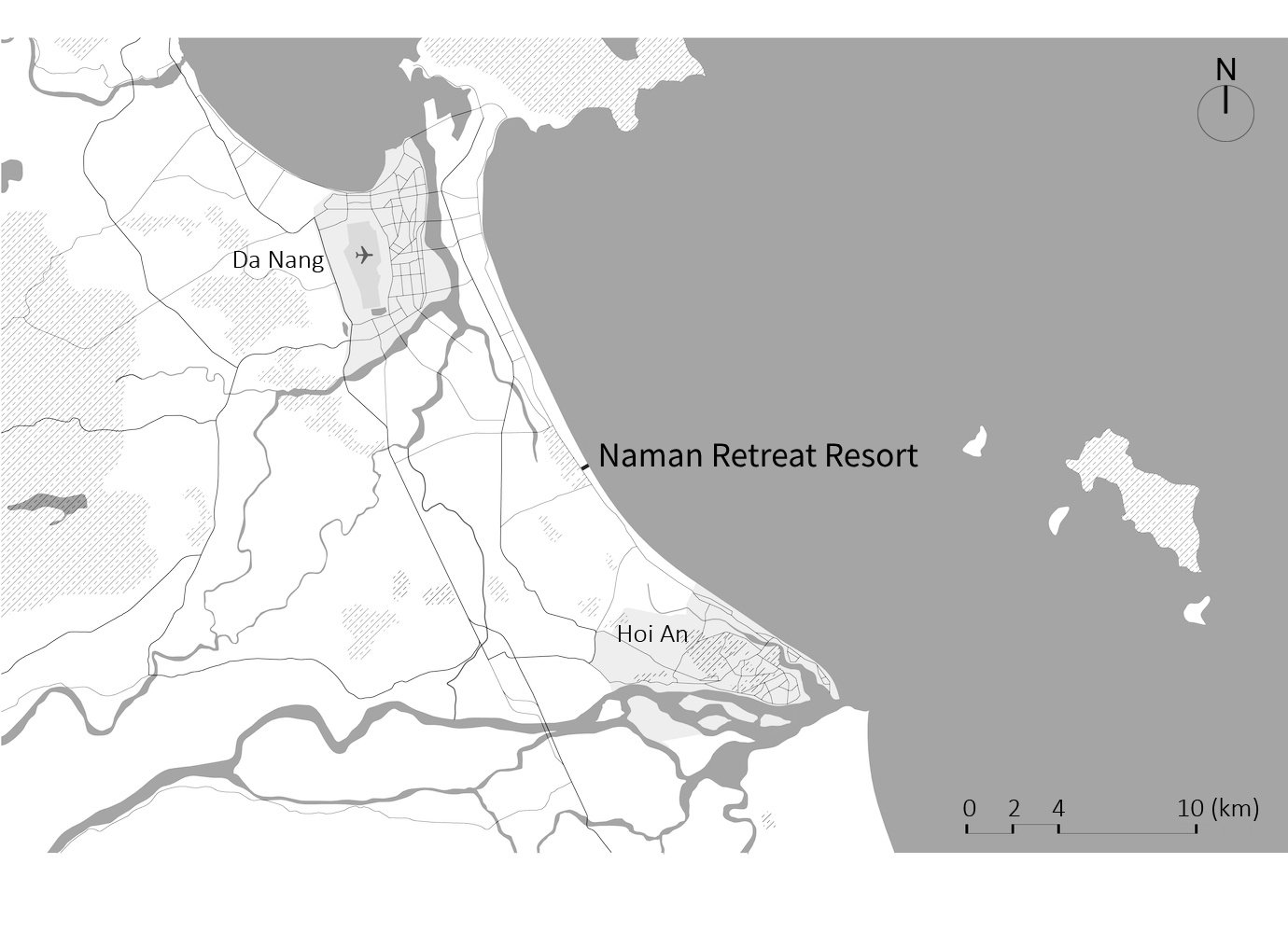

It is worthwhile to recall some past experiences in this project. Naman Retreat Resort is approximately 6.4ha in area, which was designed in 2013, completed and in operation in 2015. It is a part of the larger masterplan by the investment of The Empire Group, who known as in another name which is Thanh Do Investment Development and Construction Jsc. This large complex is hopeful to become a center of relaxing and dwelling in the near future that can serve many citizens and guests who come to stay or experience their travels. Its advantages are not only close to the sea but also close to a very beautiful river of Da Nang which is Co Co River, with its remarkabe grace. Furthermore, there is a beautiful coastal road; near the sea just several hundred meters, this road divides the masterplan into two parts. It is the very important axis which connects gripping significant places include scenic places for tourists, playing-entertaining venues and well-known services along this road from Da Nang to Hoi An Old Town - a preserving old and lovely town of Vietnam and very famous in the world that recognized by travellers as one of their destinations when come to Vietnam. Location of the resort on the city map is also an advantage that worth-considering, a great persuation to the customers in terms of mobility; where is at the middle of Da Nang and Hoi An with about 15km for half road, thus the guests who stay near here can easily take a peaceful journey to Da Nang center or the old quaters in the opposite direction by simple ways such as booking cyclo or driving bicycle.
----

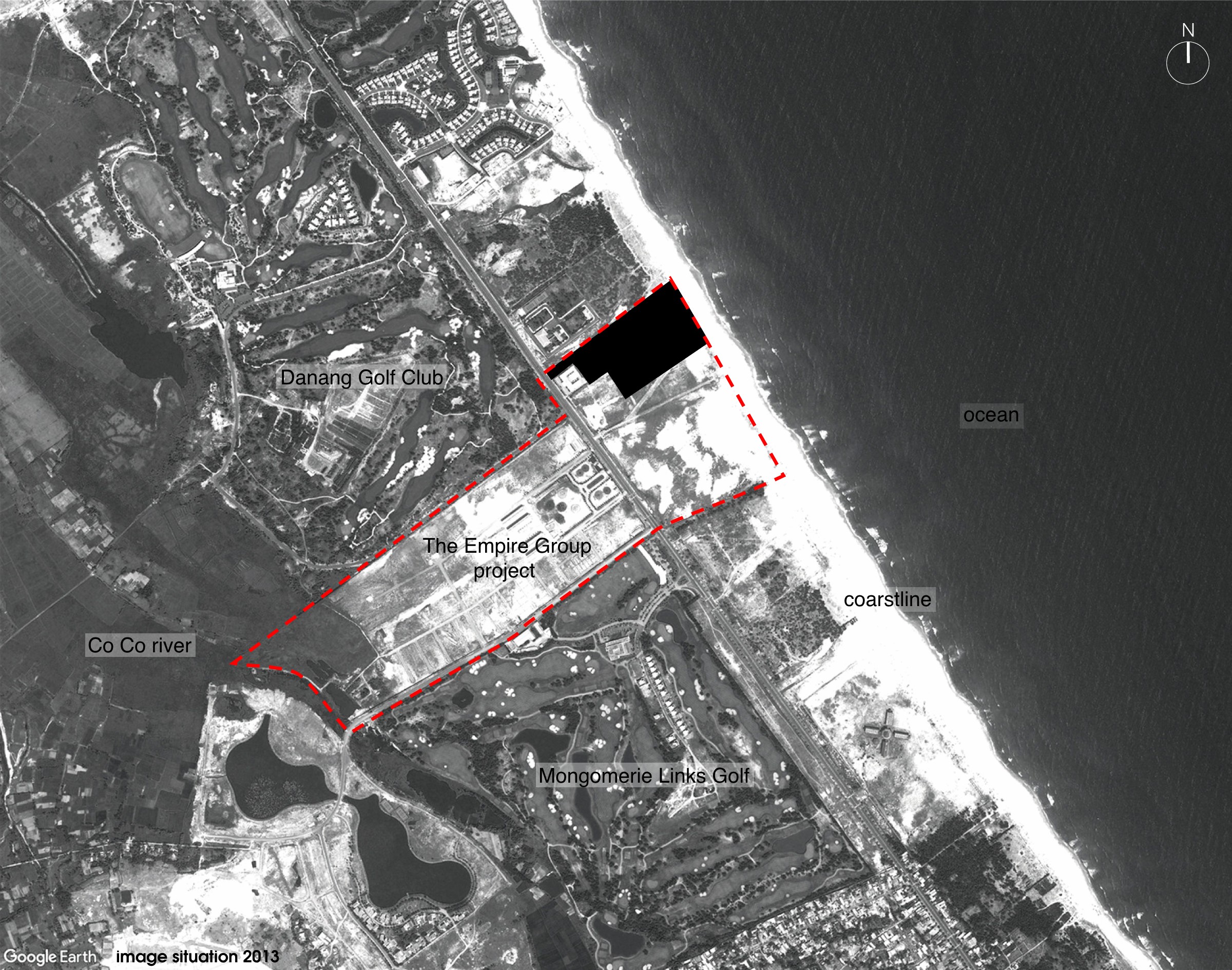

Co Co river : sông Cổ Cò
coarstline : đường bờ biển
Danang Golf Club : Câu lạc bộ Golf Đà Nẵng
Mongomerie Links golf : Sân golf Mongomerie Links
ocean : biển
specified note for this image: internet download, unknown source
----
This project, we trust that the success firstly came from the understanding and the arrangement; we have appreciated that it was a very important investment of the clients who did lay a great reliance on us. Along with organizing an applicable team with the assignment to work together, design members have tried to comfort the conflicts in relationships with our clients, and internally among us as well.
Actually, I remember that the contact representative, an architect in the team, announced the team once or twice with the same content that our clients perhaps had the intention to stop the project. They must have needed to delay the plan to build. Accordingly, they would hire other architects for another season. In this case, either the clients will keep the government-approved masterplan but not architecture parts, or they just stop the project but it is not sure if the masterplan will be applied or not. It is necessary to let you know clearly that for this type of project, there are usually two parts: Planning and Architecture. In this case, the client will keep the master plan approved by the government but not the architecture, or even they just stop the project but then they hire a re-planning: obviously, when the masterplan is not applied or only the planning is applied without the architecture, the architecture designs on it, even just drafts of the 1st term, will be mostly changed. This does not necessarily mean that the two sides do not like each other, it is simply just a phenomenon that occurs commonly in master planning projects. Design fee surely is important but it is just a small number in comparison with the total investment fee of a big project. In that context and for the category of this project, the investor could contract once again with one of many good quality architecture firms for further design or redesign. Of course our team, the architects, do not claim that we can completely afford to solve such troubles and make everything continue, but we also had our worth considering efforts. In addition to the efforts in work that do not need to be detailed here, we also have other tries as mentioned briefly at the beginning of this paragraph, such as small efforts which are patience and trying to reconcile and heal conflicts in relationships with our hope to let the project go ahead. Somehow one day, my counterpart - the contact representative as introduced, informed everyone again that the clients already agreed on the concept design and requested us to continue the phase of detailed work. There, I do not know if that is the result of the above efforts or just simply the intention of our clients, the project has been still going on...Via this description as well as the presentation of this resort, I would like to express my truely thank to our clients and all the members of the team.
------
----
